Product Description
Nanjing Carbon Recycle Biomass Energy Co.， Ltd. can produce coal mine gas pretreatment system with capacity up to 30000 Nm3/h. We can provide containerized or skid-mounted equipment according to customer’s requirement.
Main Features

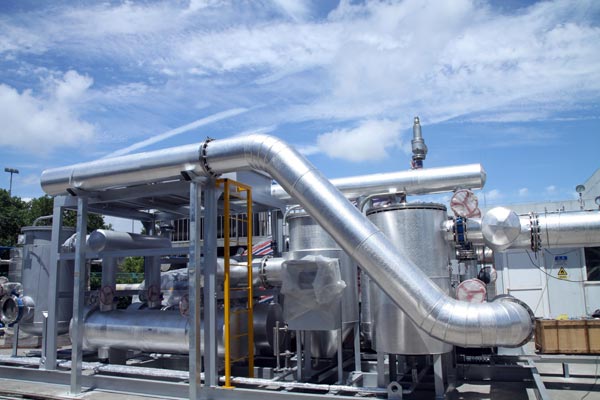

- Containerized or skid-mounted assembling;
- Fully automatic operation with data logger , display, remote communication & detection;
- On-line monitoring, alarm and shutdown to ensure safety, reliability, and long-term operation;
- PID control for automatic pressure amplification, over-pressure protection, and stabilization of gas pressure, temperature and flow rate;
- Centrifugal dehydration to reduce gas relative humidity;

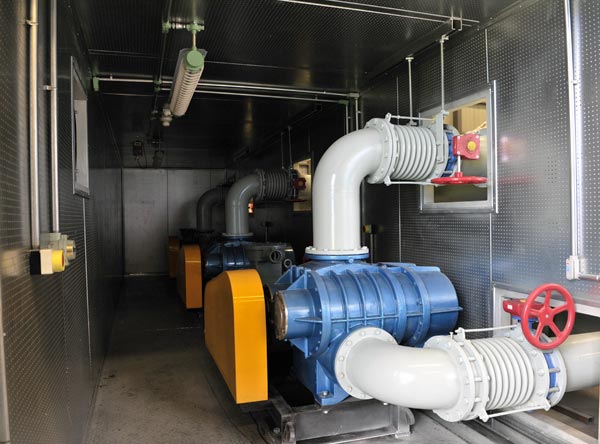

- Centrifugal blowers which are safe, noiseless and maintenance free;
- Multiple filters to ensure dust particle’s diameter less than 3 μm;
- Variable frequency control to ensure safety and energy-saving.
Specification
- Gas treatment Capacity ：2000－30000Nm3/h
- InLet Gas Temperature：10～40℃
- Inlet Pressure：>0kPa
- Inlet Gas Relative Humidity：100%RH
- Inlet Gas Particle Diameter：30μm
- Outlet Gas Temperature：≤50℃
- Outlet Gas Pressure：38kPa
- OutLet Gas Relative Humidity：≤80%RH
- Outlet Gas Particle Diameter：≤3μm
